BN500 web crossing Coiling system

FOB Reference Price:Get Latest Price
US $3,200-3,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
TJ
Model Number:
BN500
Usage:
Winding
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
STANDARD WOODEN CASE
Port
SHANGHAI/TIANJIN
Lead Time :
Shipped in 10 days after payment

1. It is used for coiling No.5 cable.
2. It can be equipped with different active pay-off frame from φ800-φ1600.
3. Equipped with VVVF, meter counter and stop automatically as per the required length of cable.

4. It  can be left a hole to let the thread in.



Mian parameter:

diameter of single:     1.8--8mm

outside diameter:   Max.500

core od coil:   180mm

width of coil:  200--240mm

rotational speed of coiling:  180r/min

total length of coils of cable:  Max.500m

dimension:   2900*1600*1250mm

weight:  1600kg

motor:2.2kw  coiling machine    5.5kw   active pay-off frame

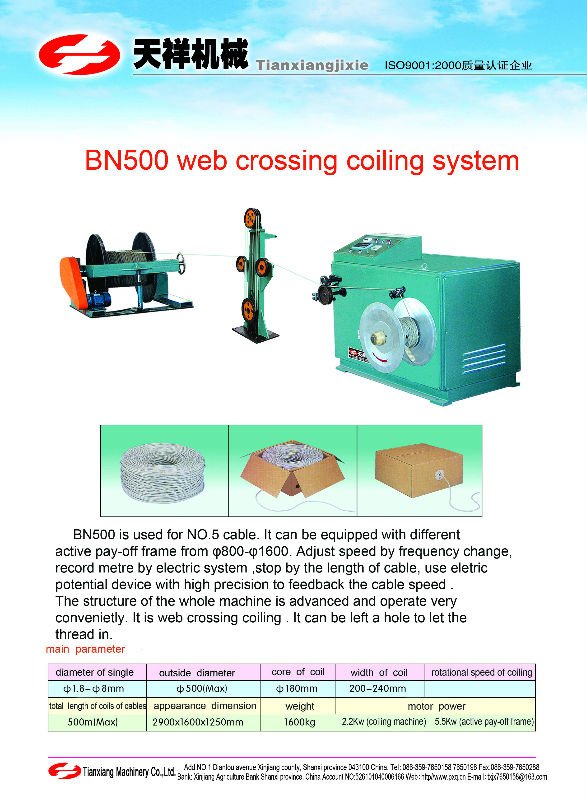

 BN500 MESH COILING MACHINE.jpg
